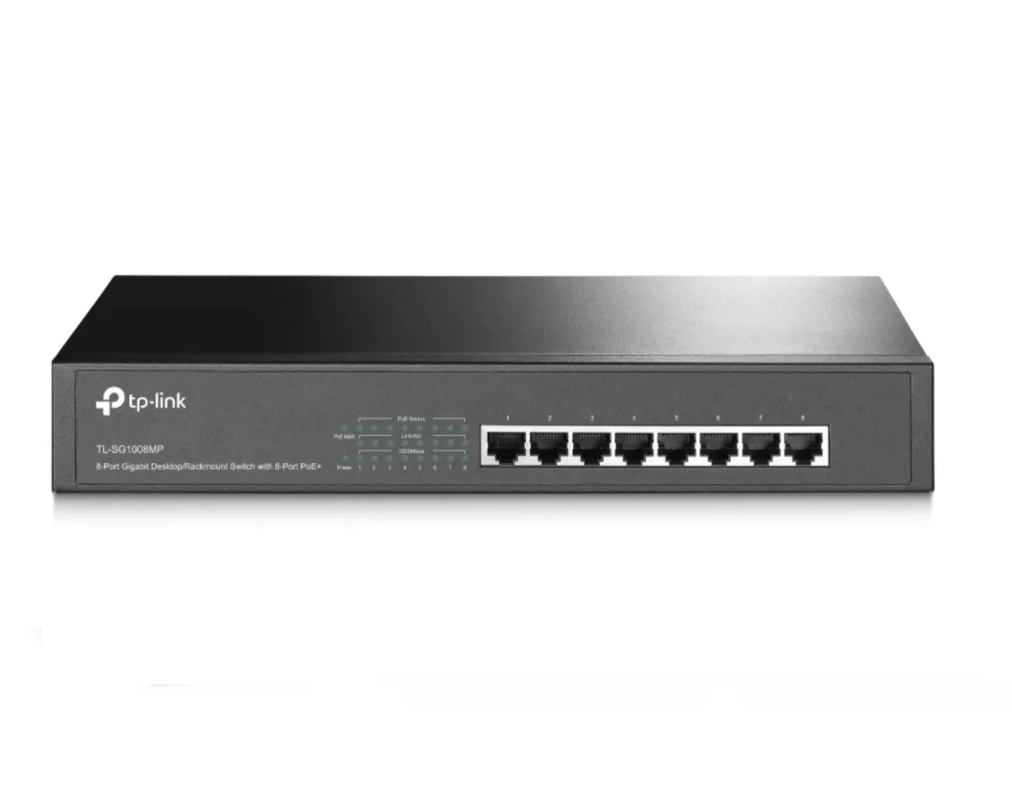

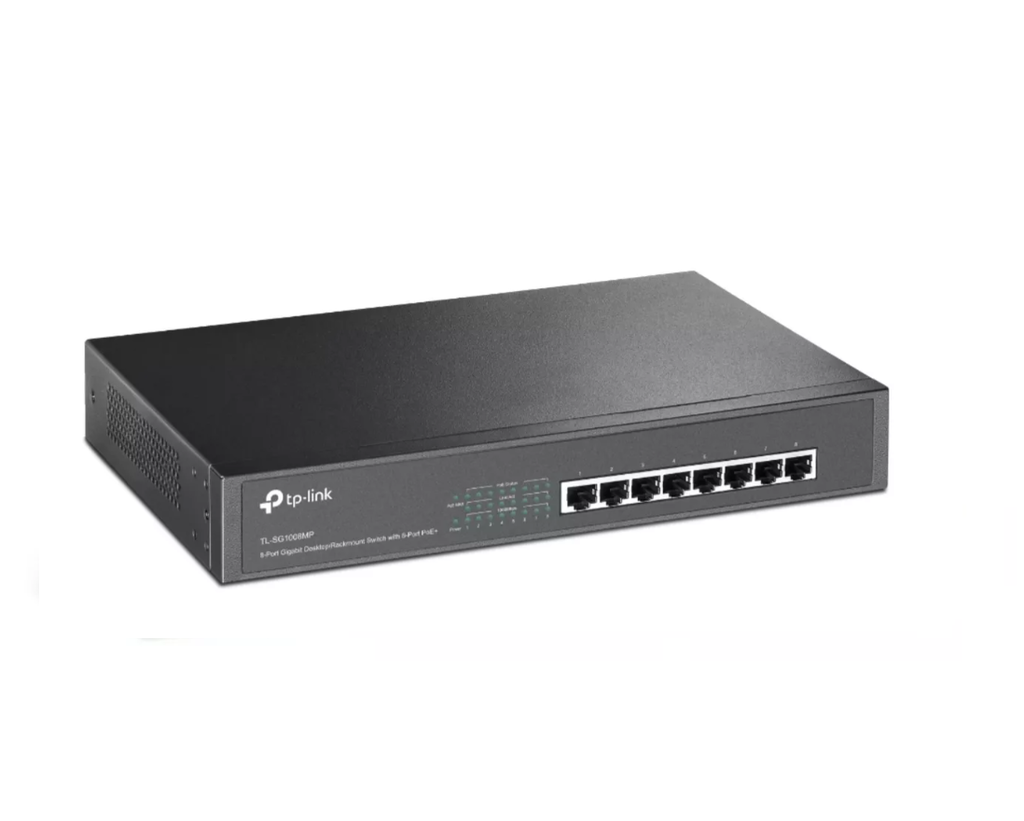

TP-LINK SWITCH TP LINK 8 PUERTOS GIGABIT POE TL-SG1008MP
8 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Innovative energy-efficient technology reduces power consumption by up to 75%
Supports PoE+ standard with total power budget of 126W and up to 30W per port
Plug and play design, no configuration required
CARACTERÍSTICAS DE HARDWARE
Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Medios de red
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Cantidad de ventiladores
1
Bloqueo de seguridad física
No

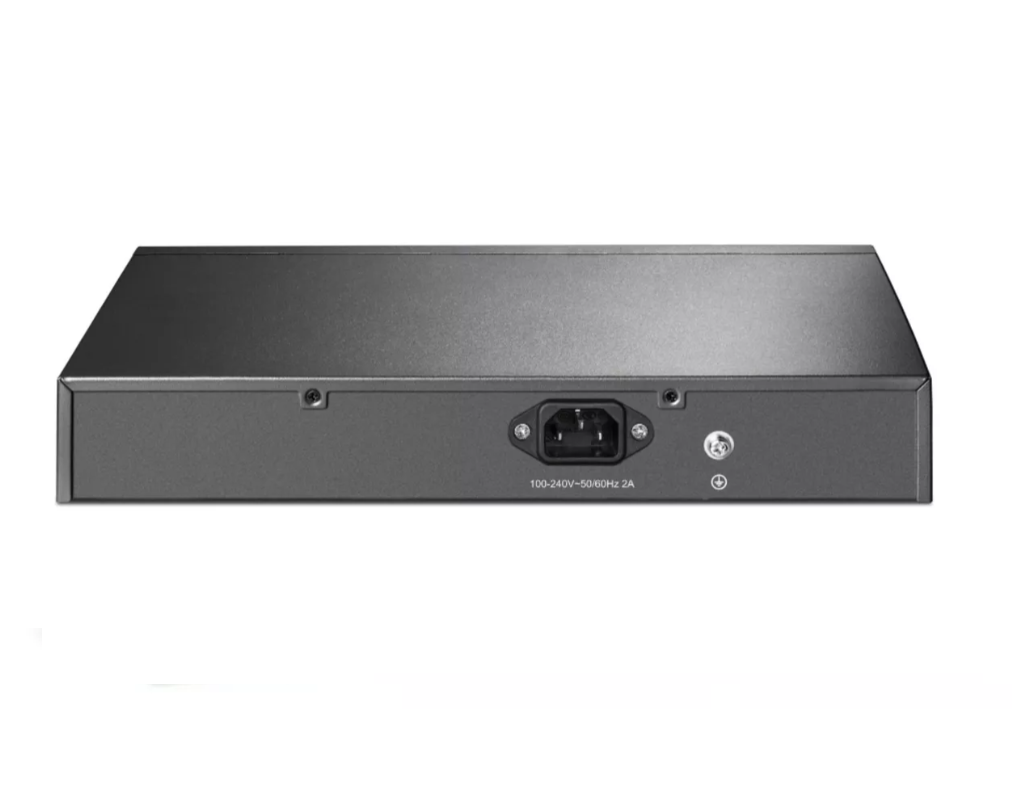

Fuente de alimentación
100-240VAC, 50/60Hz
Puertos PoE+ (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports:
8 Ports
Power Supply:
126W
Ancho de banda de retorno
16Gbps
Tabla de direcciones Mac
4K
Tamaño del búfer
1.5Mbits
Dimensiones (An x Pr x Al)
11.6 7.1 1.7 in. (294 180 44 mm)
Montaje
Rack Mountable
Consumo máximo de energía
9.89W(220V/50Hz. no PD connected)
140.67W(110V/60Hz. with 126W PD connected)
Disipación de calor máxima
33.74BTU/h(no PD connected)
492.56BTU/h(with 126W PD connected)
FUNCIONES DE SOFTWARE
Características avanzadas
Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Método de transferencia Store-And-Forward
OTROS
Certificación
FCC, CE, RoHS

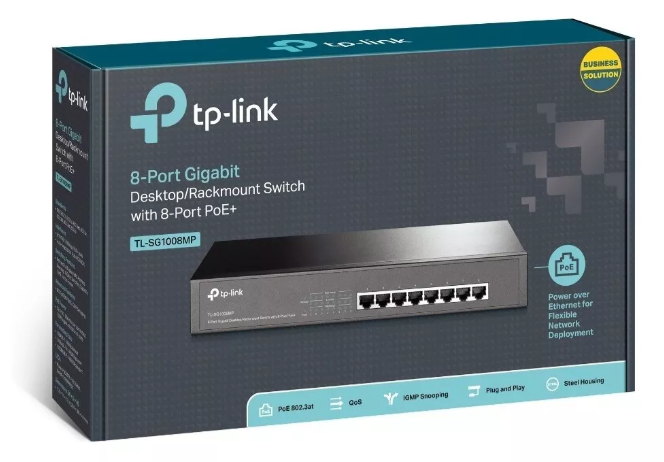

contenidos del paquete TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
